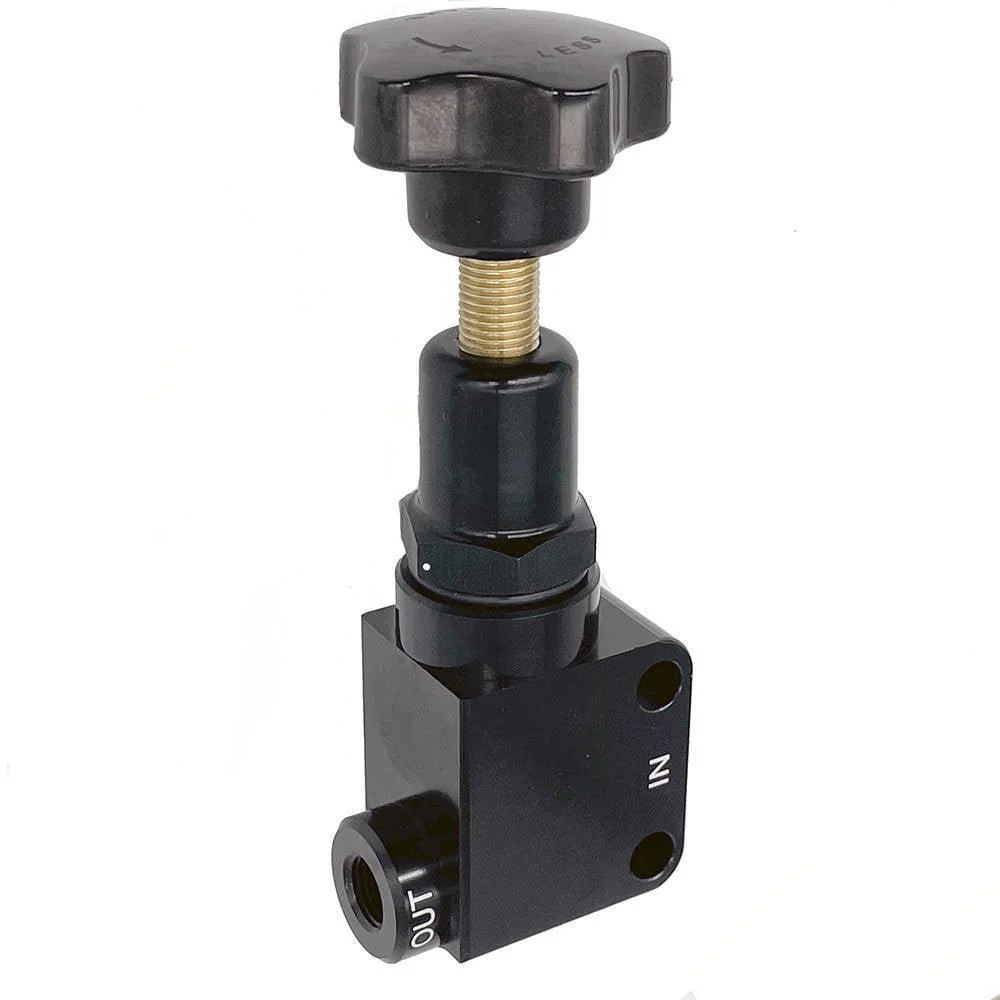

BRAKE PROPORTIONING VALVE

Install in your braking system to correct the effect of non-standard weight distribution found on many modified cars.

Up to 60% pressure reduction in either front or rear brake lines enables you to fine tune the brake balance, or dial in different braking characteristics for wet or slippery conditions.

Overall Size: 117mm x 86mm x 26mm.

Fits in a 19mm hole.

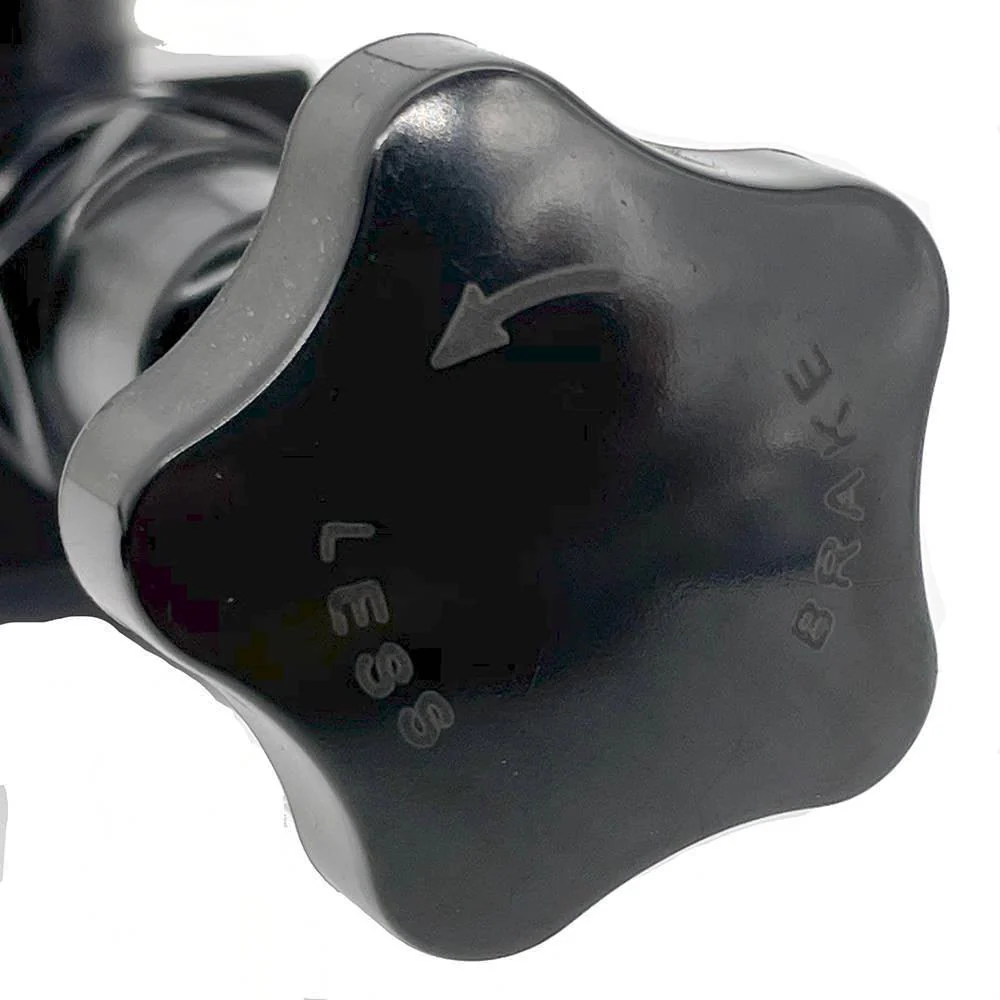

Knob diameter 37mm.

Two 7mm diameter mounting holes at 25mm centres.

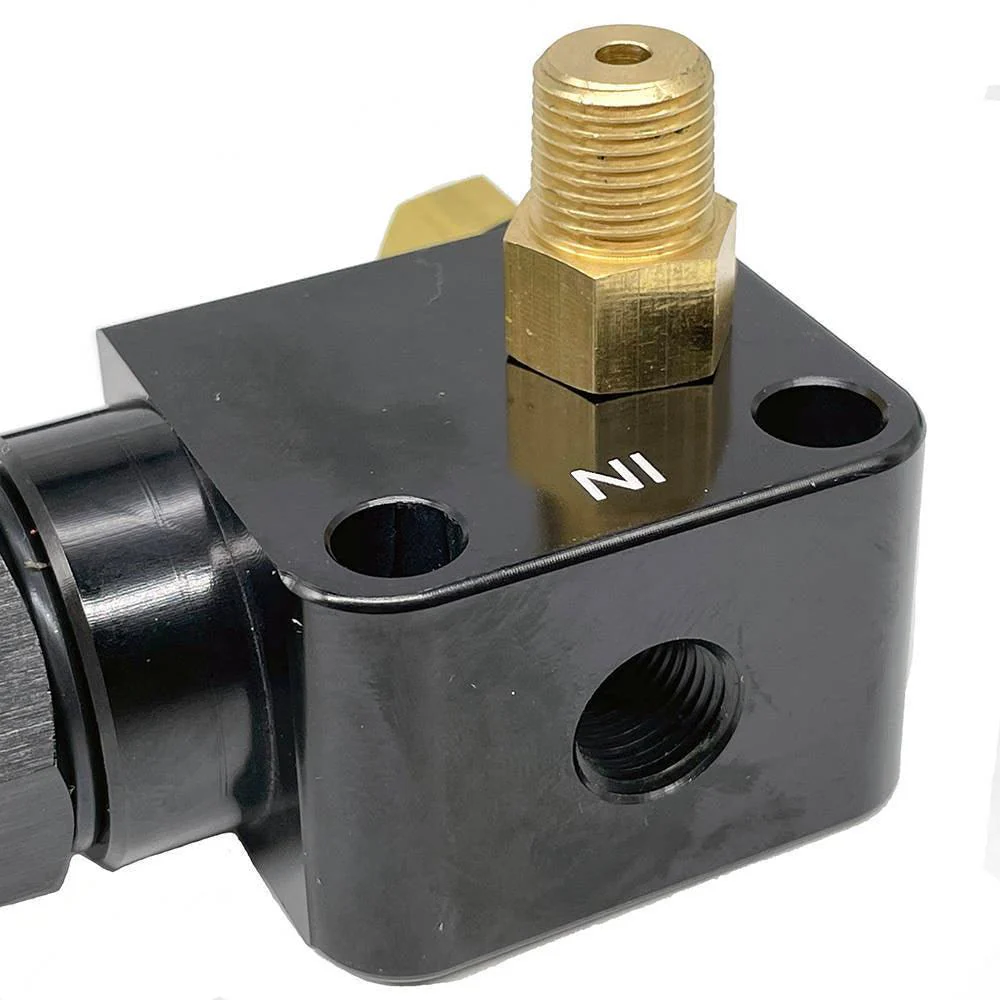

1/8" NPT female inlet and outlet port threads.

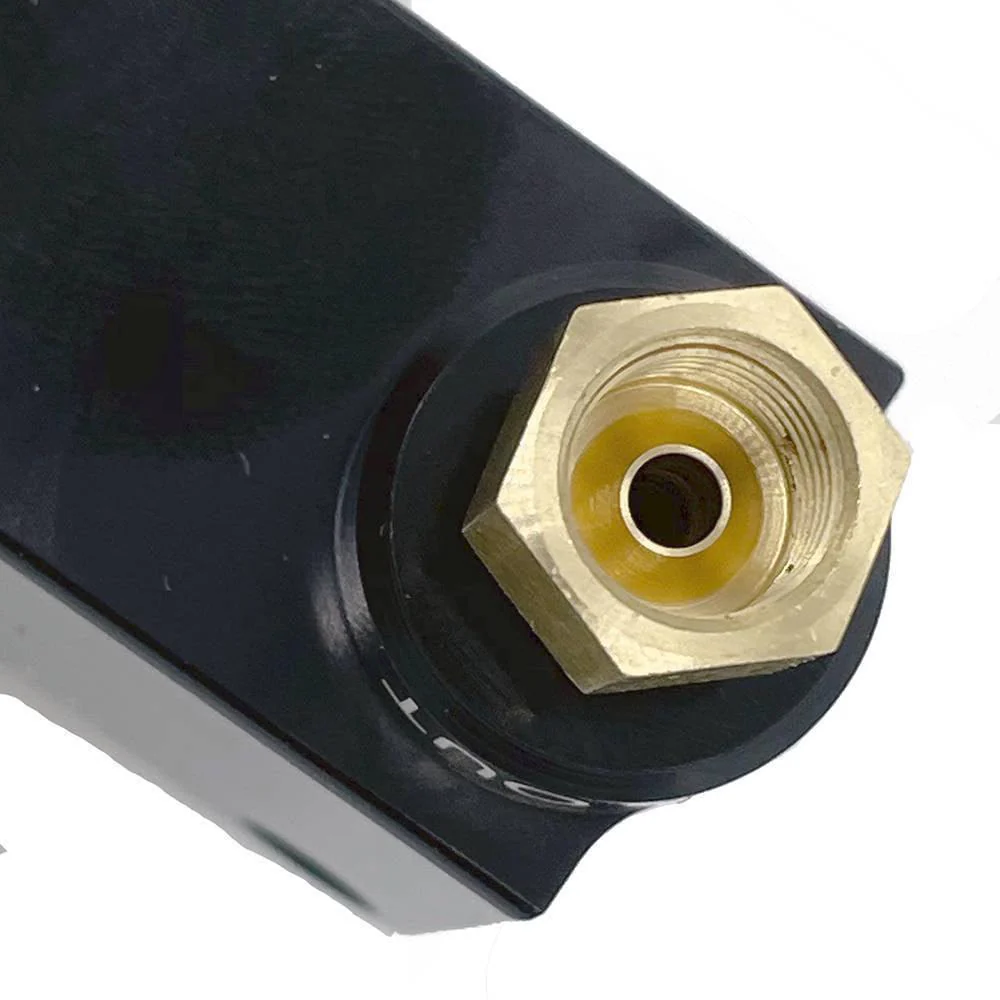

Supplied with two brass adapter unions - 1/8" NPT male to 3/8" UNF female with convex seat.

BRAKE PROPORTIONING VALVE #BRKPROP4
